ZCF - ZHF (TOP QUALITY)

ZCF - ZHF (TOP QUALITY)

ZCF - ZHF (TOP QUALITY) - CF Chiller Frigoriferi srl

ZCF

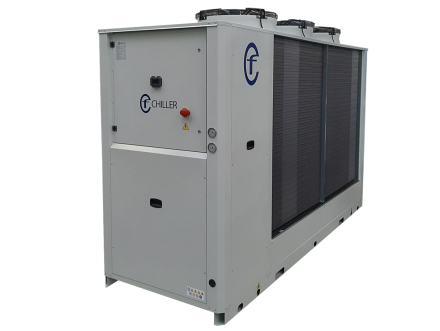

Air cooled water chiller, TOP QUALITY. Very high production levels, basic unit with standard accessories not comparable to the offer market standards. Components of a leading international brand. TOP LINE QUALITY of CF CHILLER FRIGORIFERI.

ZHF

Heat pump version, TOP QUALITY. ery high production levels, basic unit with standard accessories not comparable to the offer market standards. Components of a leading international brand. TOP LINE QUALITY of CF CHILLER FRIGORIFERI. This range of heat pump has a standard the condensing stainless steel water tank, this is included and installed inside the unit.

SHORT DESCRIPTION

This range has different models of air cooled water chiller, each unit works with R410a ecological refrigerant gas, the cooling capacity starts from 7 kW up to 150 kW. Each unit is complete with heat plate exchanger with a water filter, rotary or scroll compressor complete with crancase heater, refrigerant manometers, water by pass, low noise level version. The electrical supply is 400V/3ph/50Hz.

Each unit is complete with the PLUG&PLAY (ready to be installed), EASY MAINTENANCE (easy to make maintenance)

This range could be supply also in 60Hz on request, we can add many other options available on our price list in order to meet the need of the system to be cooled. For instance you can choose the pump size among a wide choise as P2 (2 bar), P3 (3bar), P5 (5 bar), water tank, electronic thermostatic valve.

MODELS

ONLY COOLING (cold water only)

ZCF 108 / ZCF 110 / ZCF 112 / ZCF 114 / ZCF 116 / ZCF 117

ZCF 115 / ZCF 120/ ZCF 127 / ZCF 127

ZCF 130 / ZCF 135 / ZCF 140 / ZCF  145 / ZCF 150 / ZCF 155

ZCF 1060 / ZCF 1070 / ZCF 1080 / ZCF 1100 / ZCF 1120

ZCF 1140 / ZCF 1160 / ZCF 1180 / ZCF 1200 / ZCF 1220 / ZCF 1250



HEAT PUMP (hot or cold water)

ZHF 108 / ZHF 110 / ZHF 112 / ZHF 114 / ZHF 116 / ZHF 117

ZHF 115 / ZHF 120/ ZHF 127 / ZHF 127

ZHF 130 / ZHF 135 / ZHF 140 / ZHF  145 / ZHF 150 / ZHF 155

ZHF 1060 / ZHF 1070 / ZHF 1080 / ZHF 1100 / ZHF 1120

ZHF 1140 / ZHF 1160 / ZHF 1180 / ZHF 1200 / ZHF 1220 / ZHF 1250 /



POSSIBLE VERSION

ZCF_STD = Standard

ZCF_SS = NO FERROUS, stainless steel water tank, stainless water filter

ZCF_LT = Low ambient temperature

ZCF_LW = Low water temperature

ZCF_HT = High ambient temperature

ZCF_ENO = WINE application



FIELD OF APPLICATION

Process Cooling or Air Conditioning or Confort

AVAILABILITY'

ITALY: generally this product is available on the CF stock

OUTSIDE OF ITALY: at our DISTRIBUTORI PARTNER where these are present

DOCUMENTATION WITH THE PRODUCT

Use and Maintenance manual, electrical shema, test report, cooling circuit, CE declaration

REFERENCE

You can see some installation of this product in the "reference" page. You are welcome also to take contact with our sales team for getting more information, more references, to fix an appointment in our company for getting a look to our production.



MORE INFORMATION:

write to info@chiller-frigoriferi.it

by phone, dial the number + 39 049 8792774

by fax, dial number: +39 049 8797940

by email, push ASK FOR MORE INFORMATION OR OFFER
